SWARM PoE adapter

Part of our fully integrated environmental monitoring solution

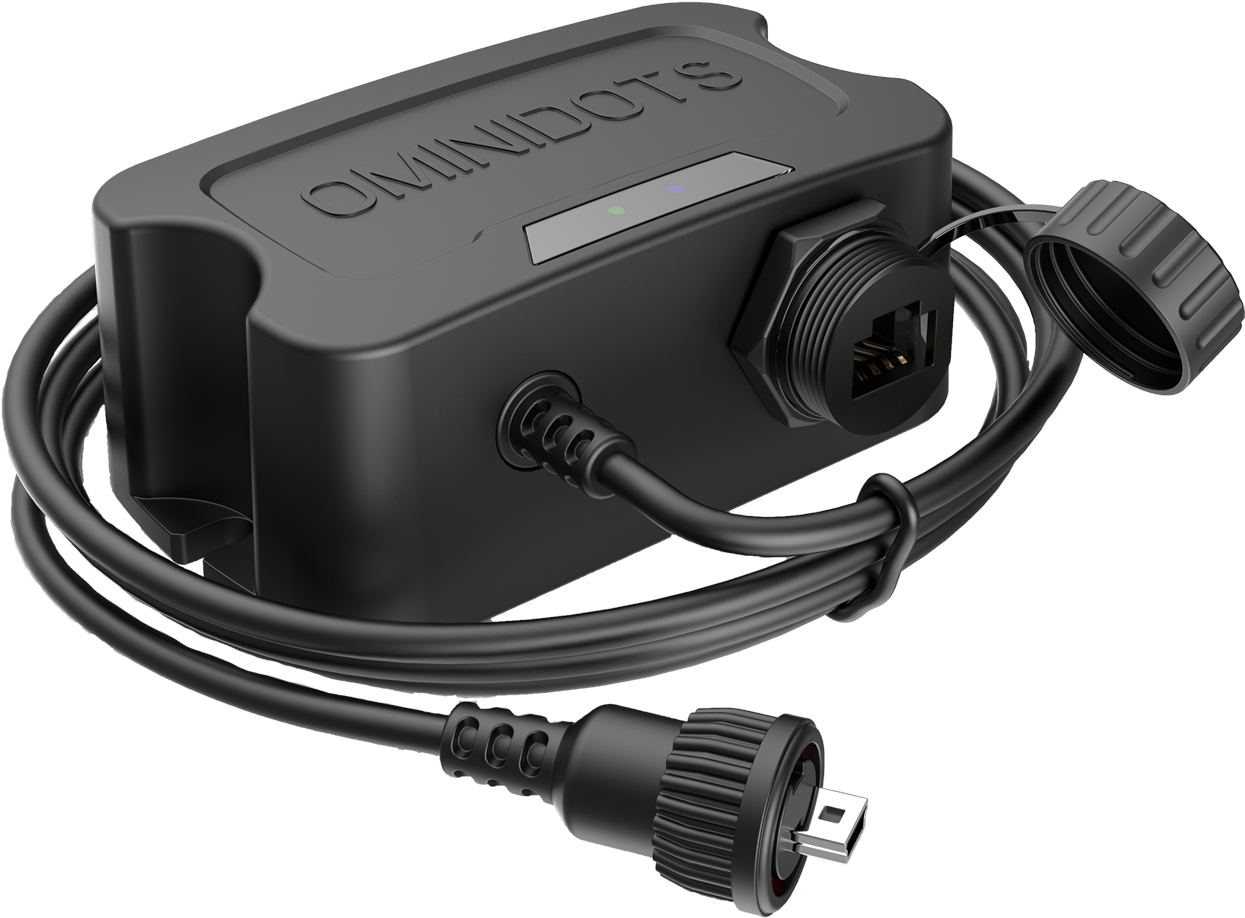

SWARM PoE Adapter

Using one cable, the PoE adapter provides the Omnidots SWARM with both Ethernet and power. When using the PoE adapter, you can install your SWARM in places with no 3G / 4G / LTE or WiFi connection or where you cannot use an Omnidots Battery, Solar panel set, or mains power. The PoE adapter is ideal for monitoring very remote areas or underground in a basement or tunnel.

Request quote Contact us


Try out our product settings on Honeycomb for free!

Information about the SWARM PoE Adapter

The SWARM PoE adapter in a nutshell

More details about the SWARM

Article number: POEADAPT/1

Vibration monitoring in places without a wireless network

Using the PoE adapter means you can use Power over Ethernet to monitor in places where there's no 3G / 4G / LTE or WiFi possibility. For example, underground tunnels, basements, or very remote locations.

Connect the PoE adapter

The PoE adapter comes with a 3-meter (9.8 ft) long cable, with which you connect the adapter to your SWARM. To connect the PoE adapter to your network*, use your own Ethernet cable of the length required for your specific project (up to 100 meters/328 ft). The PoE adapter can be used with a SWARM of the V2.1 or V2.2 series.

Securely make a splash waterproof PoE connection

If you need an IP65 (splash waterproof) connection, use the provided IP65 connector sleeve for the RJ45 connector.

* Ethernet network / LAN Network Switch / Network Outlet with PoE+ possibilities


PoE Adapter Quick Start Guide

View Quick Start Guide

Get a download of the SWARM PoE Adapter technical specifications



Discover all accessories

See all the indispensable accessories for real-time vibration and dust monitoring.

All accessoires
